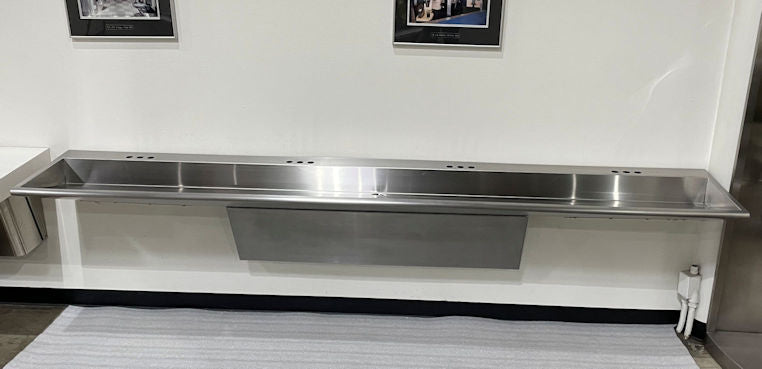

• Modern and aesthetic durable, one-piece hand wash design for wall mount.

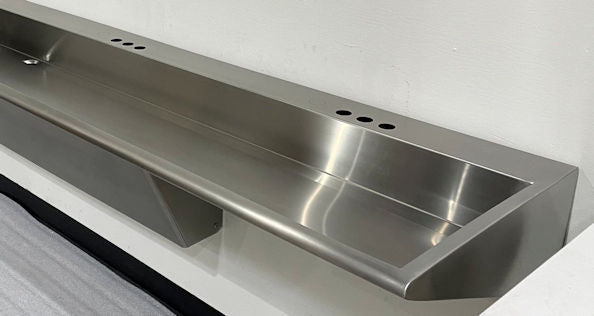

• 120" wide, 16 gauge type 304 stainless steel, hand wash trough sink is heavy-duty and has a satin finish which makes it easy to clean.
• The unit comes standard with pre-drilled holes (3) for 4" centerset faucet(s).
• Faucet selection is optional - All of our faucets meet NSF and Lead-Free Standards; all include a 0.5 GPM (1.9 LPM) Flow Control.
• 1 3/8" knock-out for soap dispenser to be installed, if required.

• Mounting includes "S" clip bracket(s) (each station) and mounting point(s) in housing for 1/4" hardware to be provided by others.
• Basin is formed to facilitate drainage and is punched to accept a 1 1/2" Drain Assembly.
• Trap cover enclosures are optional and are available in two sizes 24" and 54" to conceal plumbing/soap containers.
• Fixture complies with ANSI, UFAS, CBC and ADA 2010 requirements for accessibility (please consult your local code for additional/specific requirements).
• Patent D841785.

Features-

• Sink Type: Permanent
• Water Supply: Building Water/Hose Supply
• Water Drainage: Building Drainage/Hose Waste
• Sink Assembly: Ships flat in a box - Assembly Required

Technical Data
